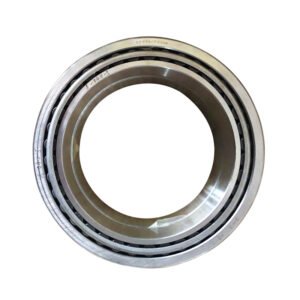

Tapered Roller Bearings

Tapered roller bearings (TRBs) in machinery and automotive systems are extremely important for handling combinations of axial and radial loads. Their unique design and stout performance standards make them irreplaceable for many applications, from vehicle wheel hubs to heavy-duty industrial machinery.

What Are Tapered Roller Bearings?

Tapered roller bearings comprise tapered rollers, an inner ring (cone), and an outer ring (cup). The rollers are constructed so that they can make line contact with the raceways while supporting some radial and axial loads simultaneously. With the conical geometry of the rollers and raceways, the projected lines of contact converge at one single point on the bearing axis to distribute these loads efficiently and avoid friction.

Key Advantages of Tapered Roller Bearings

1. High Load Capacity

Due to the line contact of the rollers with the raceways, tapered roller bearings can withstand heavy radial and axial loads. This feature makes them suitable for heavy-duty machinery and automotive applications.

2. Versatile Load Handling

A tapered roller bearing is able to withstand radial loads as well as axial loads, which makes it suitable for applications subject to both types of forces.

3. Durability and Longevity

The robust design employed to withstand heavy loads contributes to the long service life of tapered roller bearings, thereby needing less frequent replacements and maintenance.

4. Adjust Clearance

Due to the separate cone and cup design, the bearing clearance can be adjusted with accuracy on fitting to suit best working conditions and thermal expansion.

Typical Applications

Automotive Industry

Tapered roller bearings in vehicles are fitted mainly in wheel hubs, carrying the weight of the vehicle and allowing it to roll smoothly on the wheels. The tapered roller bearings are also used in steering systems and axle assemblies to manage the axial and radial loads.

Industrial Machinery

Tapered roller bearings make up the gearboxes, conveyors, and wind turbines, supporting gear shafts and load distribution while allowing efficient running of these systems.

Heavy Equipment

Tapered roller bearings are used in wheel hubs, drive shafts, and rollers in construction and mining machinery to withstand considerable dynamic and shock loads along with heavy payloads.

Limitations to Consider

1. Speed Limitations

The tapered roller bearing is not suitable for high rotational speeds due to its design, which may promote additional friction and heat generation at increased speeds.

2. Sensitivity to Misalignment

These bearings are sensitive to misalignment, resulting in uneven load sharing and contributed to premature wear; in turn, good practices in installation and alignment are mandatory for optimum performance.

3. Complex Installation

Detail, consequently sometimes with the use of specialized tools, must be paid during the installation for proper preload and adjustment. Improper installation will adversely affect bearing life and performance.

Conclusion

Tapered roller bearings count as indispensable in numerous mechanical systems, being superlative in load capacity and having versatile applications with good life. Knowledge of their design, advantages, and limitations is primordial in selecting the right bearing in a specific application. Proper installation and maintenance improve their performance and life, further increasing the reliability of the machines they uphold.

FAQs About Tapered Roller Bearings

Q1: Difference between tapered roller bearings and spherical roller bearings?

Tapered roller bearings are designed for both radial and axial loads, whereas spherical roller bearings are primarily for radial loads and can tolerate misalignment. The tapered roller bearings have a higher load capacity and greater rigidity, being quite sensitive to misalignment.

Q2: How do I go about determining the size of tapered roller bearings I need in my application?

Choosing the right size depends on several factors, including magnitude and direction of the loads, operating speed, and environmental conditions. It would be prudent to work with bearing manufacturers or consult industry standards that could help in determining the appropriate bearing size.

Q3: Is meant for tapered roller bearings to be able to support loads in both directions?

Tapered roller bearings are capable of being assembled in such a way as to be able to support axial loads in either direction. The orientation of the bearings dictates the direction of potential axial load acceptance.

Q4: Which maintenance techniques are recommended for tapered roller bearings?

Regular inspections, lubrication, and keeping contaminants at bay are some of the key maintenance techniques. Bearing service life, however, can be prolonged and premature failure mended by watching proper installation and alignment and the performance of the bearing.
