Duo Cone Seal 3418543 1498434 For Caterpillar Tractor 776C 776D 777D 394.5X366.5X38mm
5/5
| Caterpilar Part NO. | 3418543/1498434/6T8433/2134737 |
| Manufacturer Part NO. | GNL3801/Goetze76.90H-60/TLDOC3665/CR3800 |

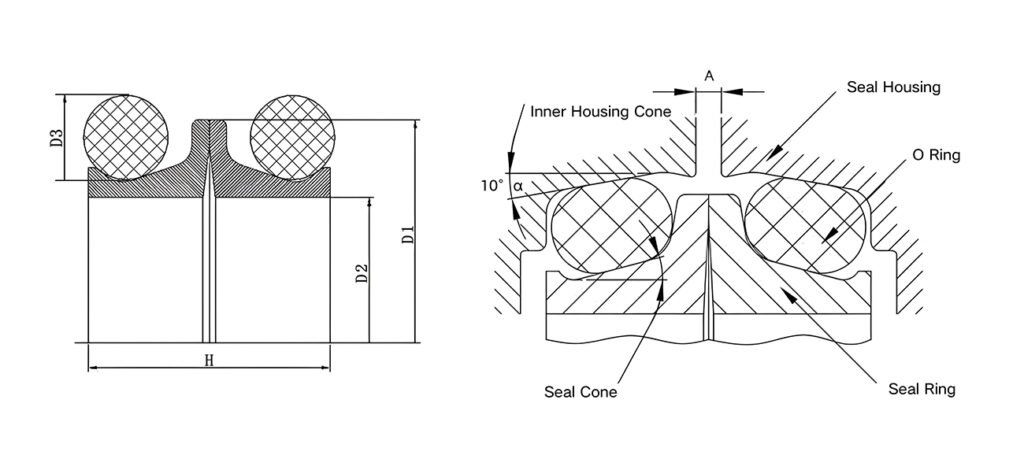

| Seal Type | DO Type Duo Cone Seal |
| Outer Diameter(D1) | 394.5 |
| Inner Diameter(D2) | 366.5mm |
| Width(H) | 38mm |
| Applicable Equipment | Caterpillar Engine C32T/3412E;ractor776C/776D/777D |
| Dozers/Grinding mills/Crawler skidders/Rotary drilling rigs | |
| Metal Ring Material | FC15Cr3Mo Cast Iron |
| Metal Ring Hardness | HRC65-70 |
| Elastomer Material | NBR/VMQ/HNBR/FKM |
| Elastomer Hardness | 60~65 Shore A |
| Peripheral Velocity | 3~6m/S |
