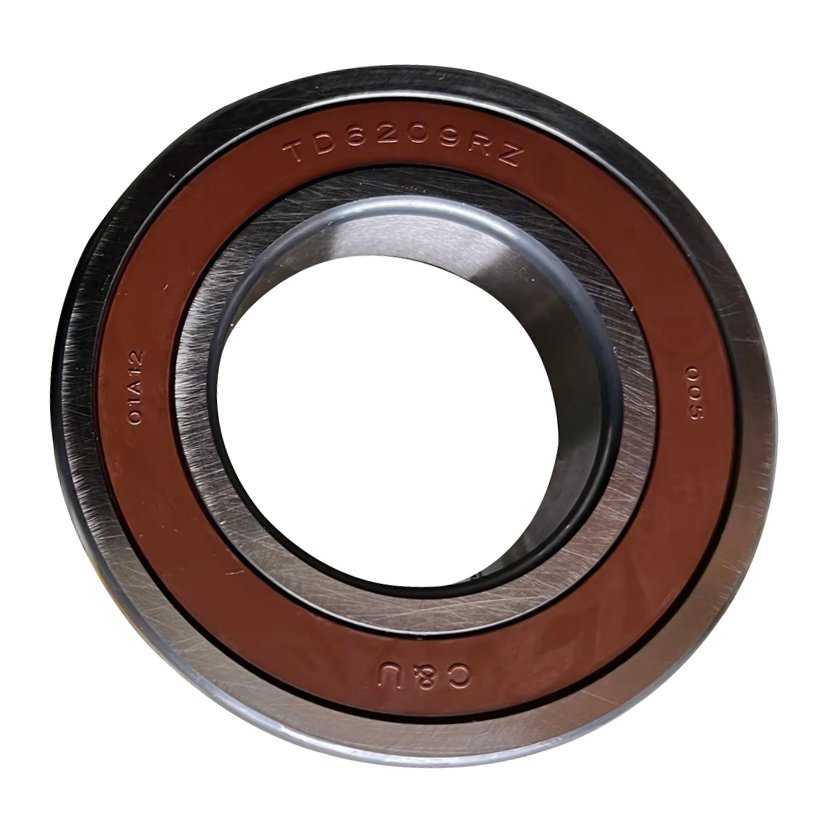

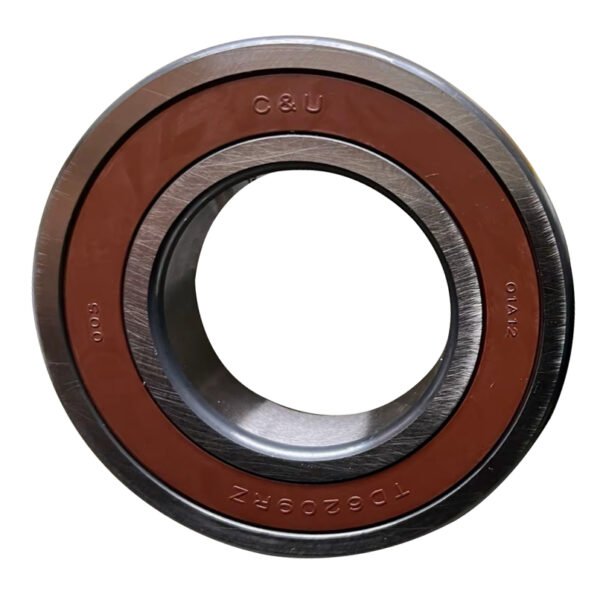

TD6209RZ C&U High Precision Single Row Deep Groove Ball Bearing 45X85X19mm

5/5

Product Specifications

Part NO. TD6209RZ
Brand C&U
Inside Diameter 45mm
Outside Diameter 85mm
Width 19mm
Cage Type Steel
Seal Type None Contact Seals
Precision P5
vibration velocity Z2 Or Above
Dynamic Load Rating (Cr) 31.2KN
Static Load Rating (C0r) 20.3KN
Grease Limiting Speed 10140r/min
Mass 0.4kg

Description

The C&U TD series product is the top-tier product line launched by C&U Bearings

Product Features:Steel material is superior to regular C&U products: Mainly reflected in the steel density, quenching process, and steel toughness.

Precision: The TD series products are all engeneered with P5-level precision, Z2-level or above noise standards, ensuring quality that fully matches globally renowned bearing brands.

Appearance and Packaging: All TD series products come in individual box packaging. The bearing surface is blackened with salt bath quenching, and the rubber seals are available in red-brown and black.
